Direct Answer:

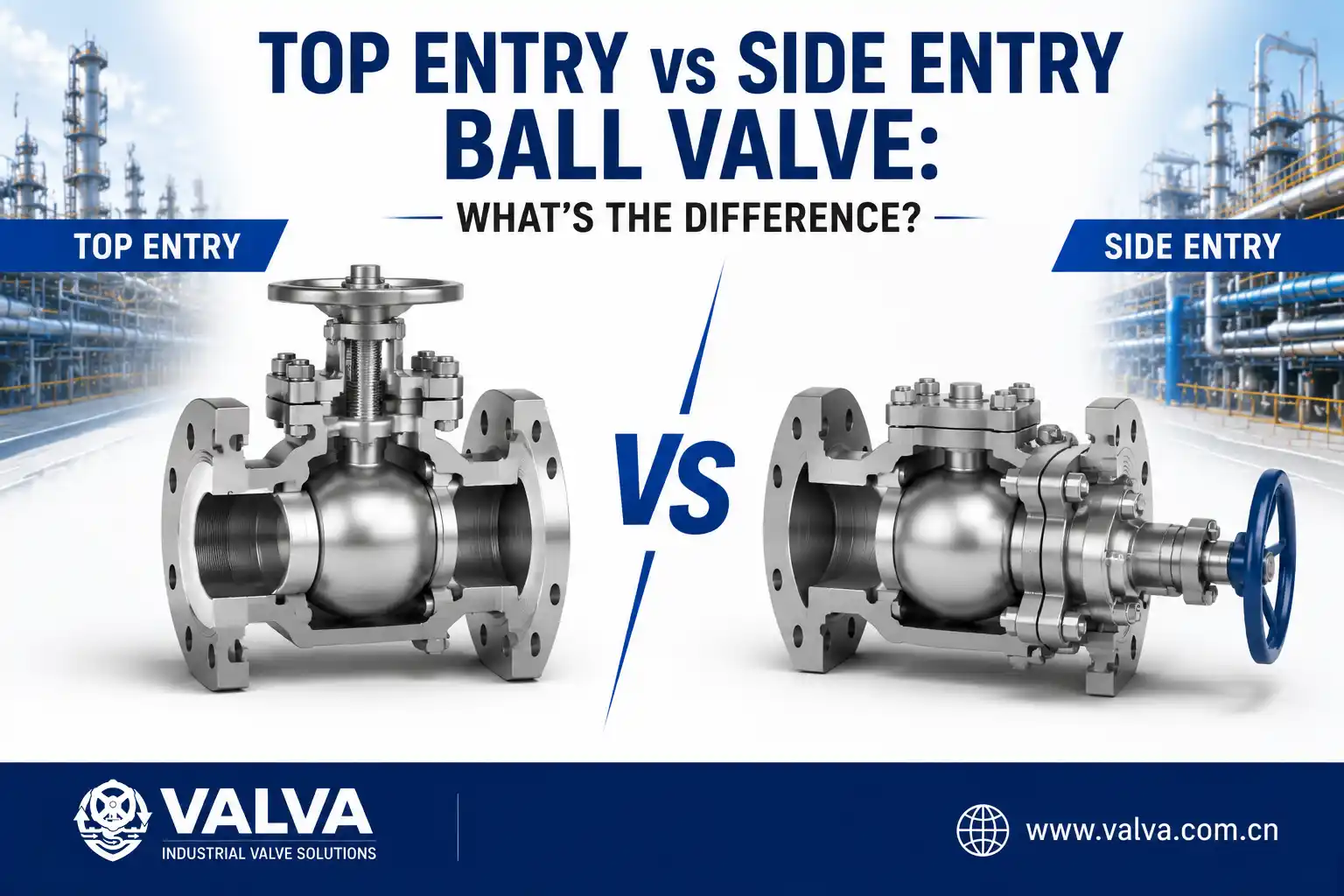

Top entry vs side entry ball valve—the key difference is maintenance access and body construction. A top entry ball valve allows internal maintenance from the top without removing the valve from the pipeline, while a side entry ball valve (split body design) requires disassembly of the body halves or removal from the line for servicing.
Understanding top entry vs side entry ball valve helps engineers choose between easy in-line maintenance and more economical standard pipeline installation.
What Is a Top Entry Ball Valve?
A top entry ball valve is designed so that all internal components can be accessed from the top of the valve body.
During maintenance:
- The bonnet is removed from the top.
- The ball, seats, and stem are lifted out vertically.
- The valve body remains installed in the pipeline.
Because of this structure, top entry ball valves provide:
- Full in-line maintenance capability
- Reduced pipeline downtime
- Easier inspection and repair
- Ideal use in critical systems
- High suitability for automation systems
However, they require higher manufacturing precision and cost.
What Is a Side Entry Ball Valve?
A side entry ball valve is built with a split body design where the ball is inserted from the side during assembly.
Common configurations include:
- Two-piece body
- Three-piece body
During maintenance:
- The valve may need partial or full disassembly.
- In many cases, removal from pipeline is required.
Because of this structure, side entry ball valves provide:
- Strong mechanical integrity
- Lower manufacturing cost
- Wide industrial availability
- Reliable shut-off performance
However, maintenance is less convenient compared to top entry designs.
Top Entry vs Side Entry Ball Valve: Key Differences
| Feature | Top Entry Ball Valve | Side Entry Ball Valve |
|---|---|---|
| Maintenance access | From top, in-line | Side disassembly or removal |
| Pipeline downtime | Low | Higher |
| Body design | Single-piece top-access body | Split body (2 or 3 piece) |
| Cost | Higher | Lower |
| Installation | More complex | Easier |
| Maintenance convenience | Excellent | Moderate |
| Structural strength | Very high | High |
| Common usage | Critical systems | General industrial systems |
Maintenance and Serviceability
Top entry ball valves are designed for fast maintenance in critical systems.
As a result:
- Operators can remove internal parts without dismantling piping.
- Downtime is significantly reduced.
- Maintenance is safer and more controlled.
In contrast, side entry ball valves require:
- Body disassembly
- Possible pipeline removal
- More labor during servicing
Therefore, side entry designs are more suitable for non-critical or budget-sensitive systems.
Pressure and Performance
Both valve types can handle high-pressure applications depending on material and design class.
However:
- Top entry valves are commonly used in high-pressure pipelines where shutdown cost is high.
- Side entry valves are widely used in general industrial and utility systems.
Performance differences are minimal in operation; the main difference lies in maintenance strategy.
Cost Comparison
Top entry ball valves are more expensive because:
- Complex body machining is required
- Precision internal alignment is critical
- Designed for advanced industrial applications
Side entry ball valves are more cost-effective because:
- Simpler split-body construction
- Easier manufacturing process
- Widely standardized designs
However, long-term cost may favor top entry valves in systems with frequent maintenance needs.
Applications
Top Entry Ball Valve Applications
- Oil and gas pipelines
- Offshore platforms
- High-pressure transmission systems
- Power plants
- Critical process industries
Side Entry Ball Valve Applications
- Water treatment systems
- HVAC systems
- Chemical utility lines
- General industrial pipelines
- Non-critical flow control systems
How to Choose Between Top Entry and Side Entry Ball Valves
Before selecting a valve, evaluate:
- Maintenance frequency
- Pipeline downtime cost
- System criticality
- Budget constraints
- Installation space
- Safety requirements
If the system cannot afford shutdowns, choose a top entry ball valve.
If cost efficiency is more important, a side entry ball valve is sufficient.
Conclusion
In the comparison of top entry vs side entry ball valve, top entry designs provide superior in-line maintenance and reduced downtime for critical systems, while side entry designs offer lower cost and simpler installation for general industrial applications. The correct choice depends on maintenance strategy and system importance.
Frequently Asked Questions
What is the main advantage of a top entry ball valve?
Easy in-line maintenance.
Top entry designs allow internal parts to be serviced without removing the valve from the pipeline, reducing downtime significantly.
Are side entry ball valves suitable for high pressure?
Yes.
Side entry ball valves can handle high pressure depending on material and design class, but they are more commonly used in general industrial systems.
Why are top entry ball valves more expensive?
Due to complex design.
They require precise machining and engineering to support in-line maintenance while maintaining high-pressure integrity.
