Direct Answer

The working principle of a globe valve is based on linear motion, where a disc moves up and down against a seat to control, throttle, or completely stop fluid flow in a pipeline.

---

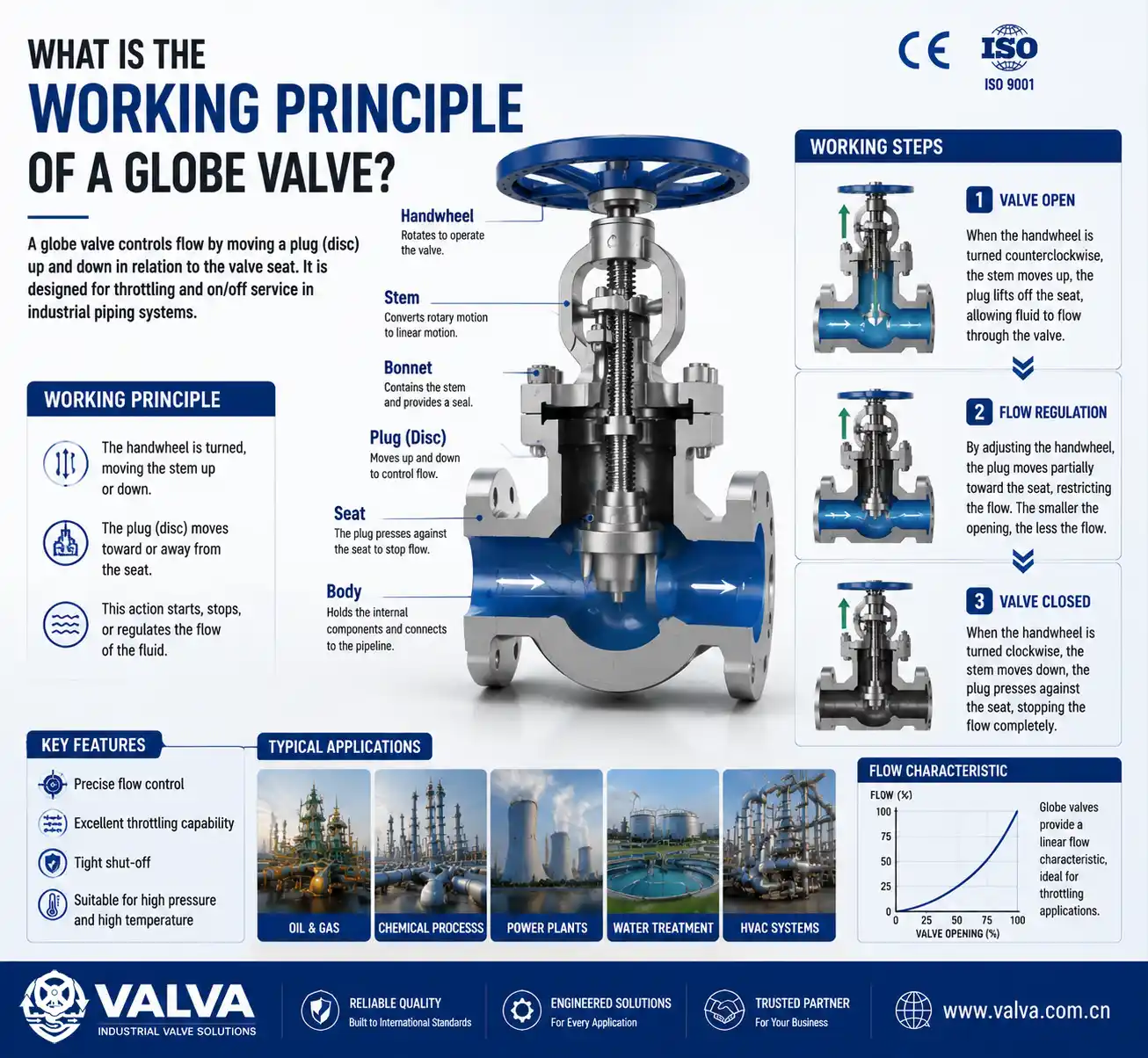

How a Globe Valve Works Internally

A globe valve operates through a simple mechanical movement system:

• The handwheel or actuator rotates
• The stem moves linearly up or down
• The disc attached to the stem changes position
• The opening between disc and seat adjusts flow

As a result, flow is precisely controlled.

---

Flow Control Principle

The key principle is variable restriction of flow:

When opening the valve

• Disc lifts away from the seat
• Flow passage increases
• Fluid moves more freely

When partially open

• Disc partially blocks the flow path
• Flow is throttled and controlled
• Pressure drops across the valve

When fully closed

• Disc presses tightly onto the seat
• Flow is completely stopped

---

Why Globe Valves Provide Precise Control

Globe valves are effective for regulation because:

• The disc moves gradually rather than rotating
• Small adjustments create predictable flow changes
• Internal flow path increases control stability
• Suitable for continuous process adjustment

---

Internal Flow Path Effect

Inside the valve body:

• Fluid changes direction (Z-shaped path)
• Velocity and pressure are modified
• Controlled resistance is created

This design supports accurate throttling but also increases pressure drop.

---

Industrial Applications

Because of this working principle, globe valves are widely used in:

• Steam control systems
• Oil and gas processing lines
• Chemical dosing systems
• Power plant auxiliary pipelines
• Cooling and heating systems

---

Limitation of the Working Principle

The same design that enables control also causes:

• Higher pressure loss compared to gate or ball valves
• Not ideal for large flow transmission
• Less efficient for long pipelines

---

Conclusion

The working principle of a globe valve is linear stem movement that adjusts a disc to control flow through a variable opening, making it ideal for throttling and precise flow regulation in industrial pipelines.

---

Frequently Asked Questions

How does a globe valve regulate flow?

It regulates flow by moving a disc up or down to change the size of the opening between the disc and seat.

---

Why is globe valve suitable for throttling?

Because its linear motion allows fine and stable adjustment of flow rate.

---

What happens inside a globe valve?

Fluid follows a directional path inside the valve body, where the disc position controls resistance and flow rate.
